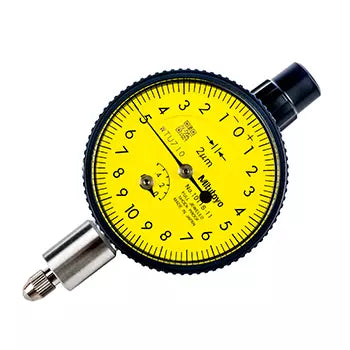

MITUTOYO 1011S-11 0.5mm Metric-Series1 Dial Indicator 3/8” DIA
Description
MITUTOYO 1011S-11 0.5mm Metric-Series1 Dial Indicator 3/8” DIA
The MITUTOYO 1011S-11 Metric-Series1 Dial Indicator is a precision tool designed for accurate measurements. With a 0.5mm dial display and 3/8" diameter, it is perfect for precise measurements in the metric system. Ideal for professionals looking for reliable and accurate results.
- Range: 0-0.5mm
- Graduations: 0.002mm
- Range/Rev: 0.2mm
- Dial Reading: 0-10-0
- Type: with lug
- Accuracy (First 2.5 Rev): +/- 0.002mm
- Accuracy (Overall): +/- 0.002mm
- Measuring Force: 1.5N or less
- Stem/Shank: 3/8″
- Contact Point: #4-48 UNF Thread
- Type: ANSI/AGD
Features:
- Revolutionary stem-bush design for trouble-free stem clamping (longer clamping range)
- No through screw hole on the frame for high dust-resistance
- Involute curved lifting lever for smooth movement of spindle and dovetail joint for tool-less connection
- Grater rigidity in the bearing plate for reducing the retracing error (20%) and 4-screw mounting for increasing impact resistance.
- Any part number followed with a “B” means that model has a flat back (no lug)
- Refer to Chart Size Image for product specification
