TECNOGI TN27 Torque Multiplier With Reaction Anchor

RM0.00 MYR
By TECNOGI
Description

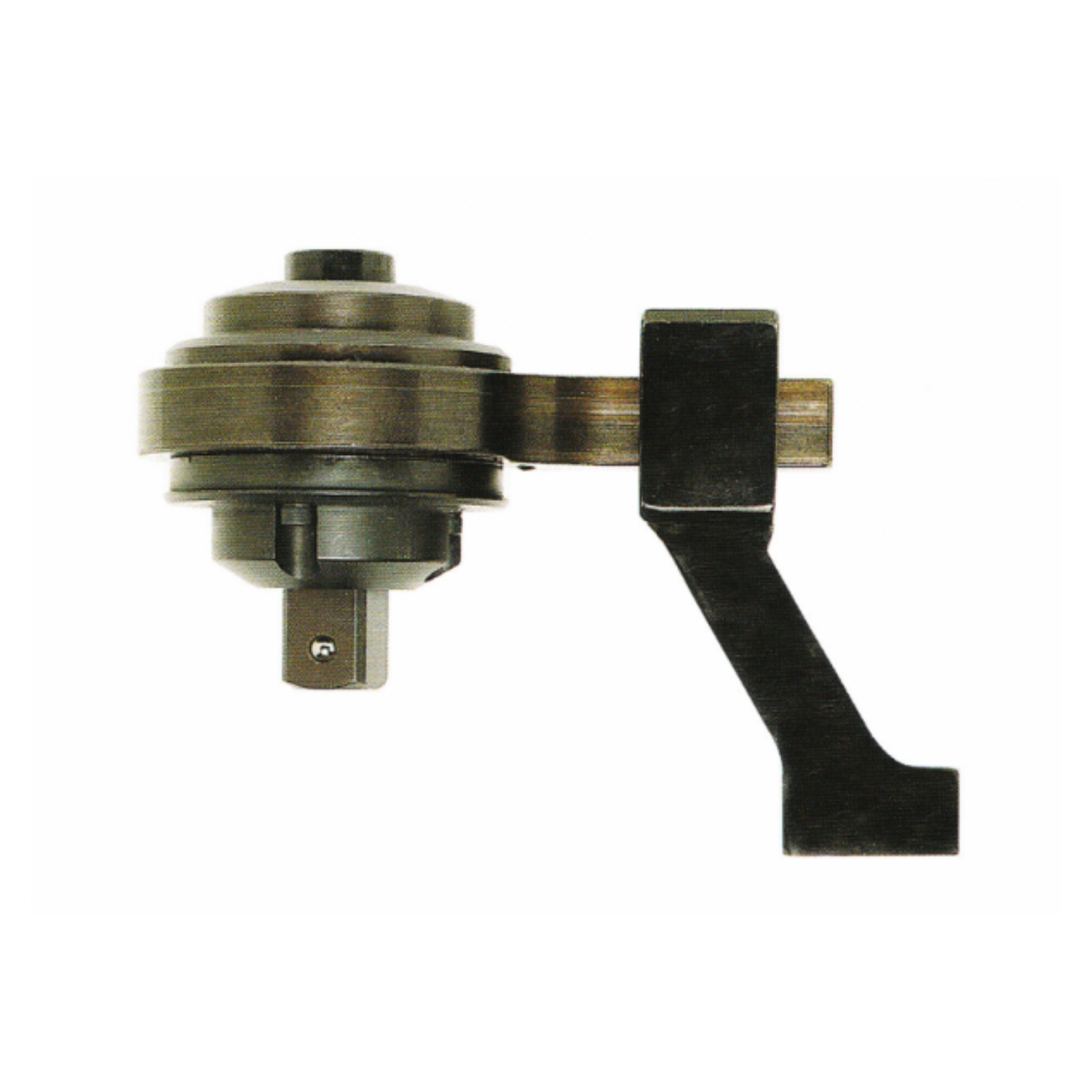

TECNOGI TN27 Torque Multiplier With Reaction Anchor

The TECNOGI TN27 Torque Multiplier with Reaction Anchor is a powerful tool for increasing torque output, improving efficiency, and reducing operator fatigue. Its versatile design allows for easy use in various industries and applications. With the TN27, you can achieve precise and accurate torque levels with ease.

Multipliers For Torque Wrench

Designed for providing high tightening also in confined area, with safety protection againts overloads: the output square drive, interchangeable, is calibrated to break if overloaded the 20% in order to protect the inside mechanism. One square drive replacement is inculded. Tighten forces are transmitted easily with the maximum accuracy. Gears are manufactured with high precision and high quality steel.

Mod. TN27 With reaction anchor

  • Ratio 5,4:1
  • Max Input 500 Nm. 370 Lbf.ft
  • Max Output 2700 Nm. 2000 Lbf.ft
  • Length 221mm
  • Weidth 115mm
  • Height 122,7mm
  • Weight 6,34 Kg

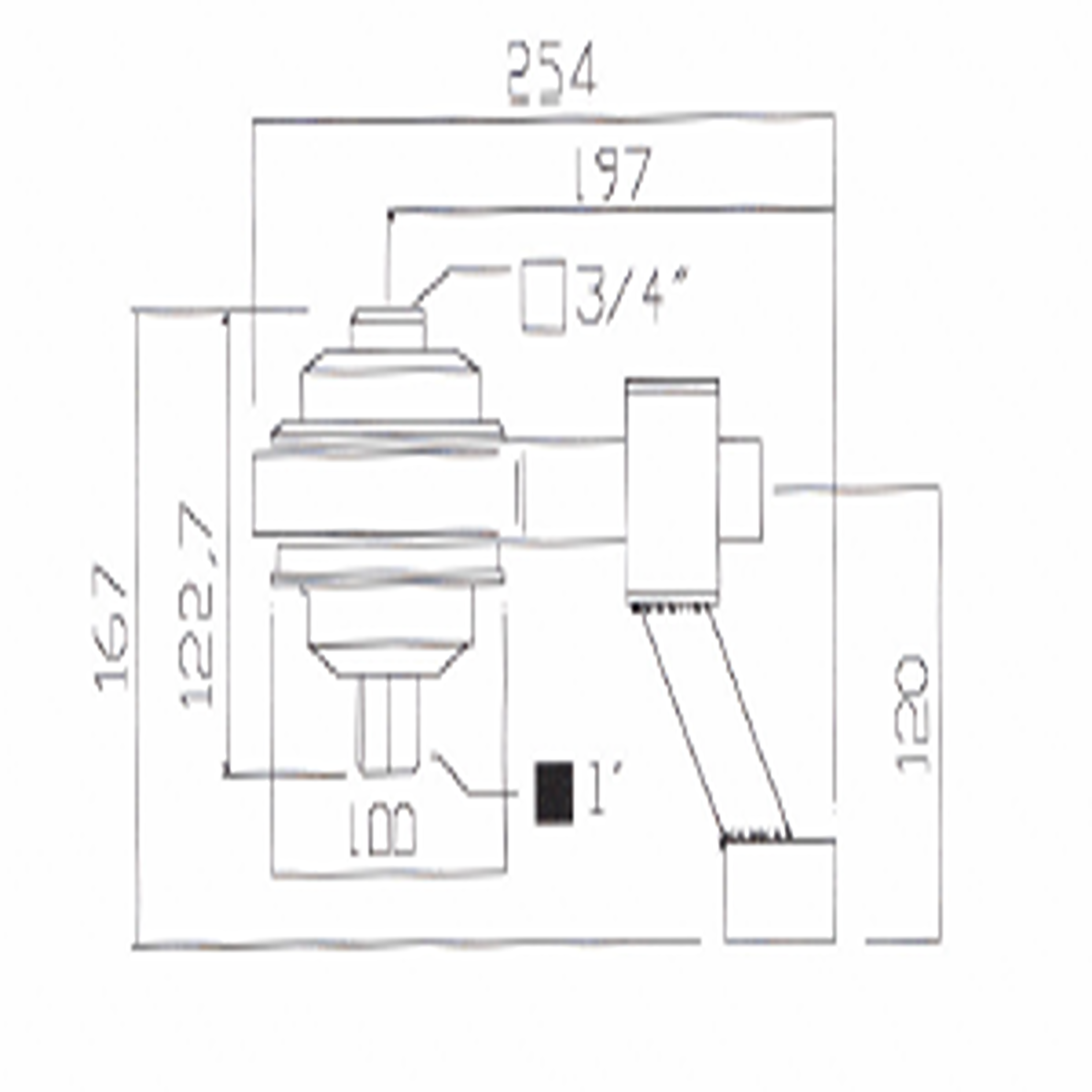

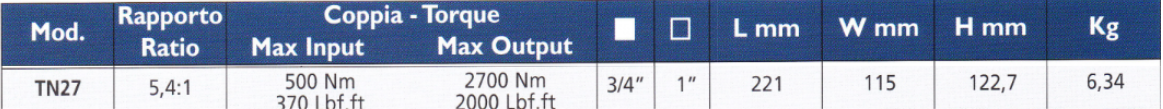

- Refer to Chart Size Image for product specification TECNOGI TN27
