TECNOGI TN40 Torque Multiplier with Reaction Bar (TECNOGI Tools)

RM0.00 MYR
By TECNOGI
Description

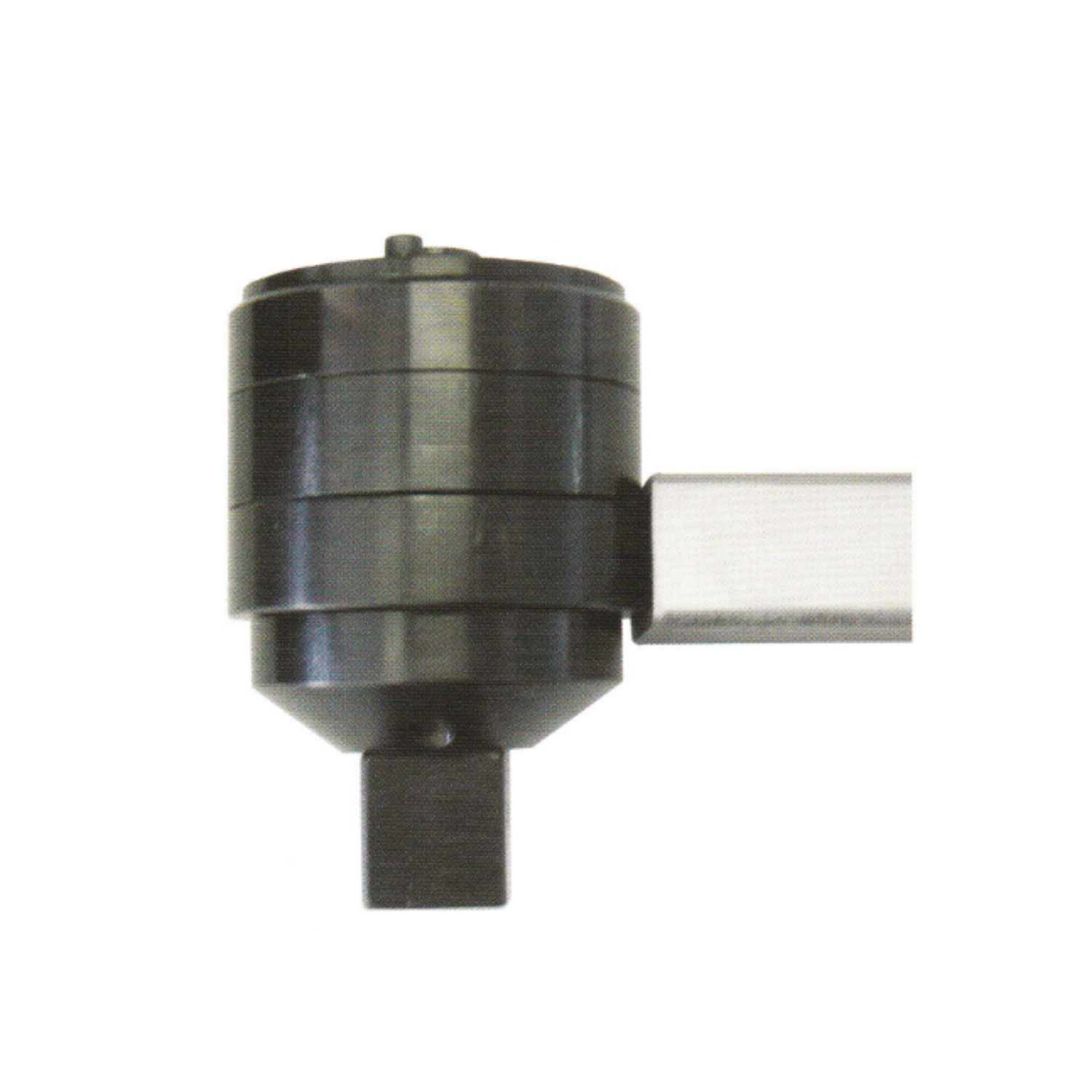

TECNOGI TN40 Torque Multiplier 1/2", 1 1/2" (TECNOGI Tools)

The TECNOGI TN40 Torque Multiplier is a powerful tool designed to increase torque output by up to 40 times. Its versatile 1/2" and 1 1/2" drives allow for use in a variety of situations, providing increased efficiency and precision. Perfect for any professional seeking to maximize productivity and accuracy.

Multipliers For Torque Wrench

Designed for providing high tightening also in confined area, with safety protection againts overloads: the output square drive, interchangeable, is calibrated to break if overloaded the 20% in order to protect the inside mechanism. One square drive replacement is inculded. Tighten forces are transmitted easily with the maximum accuracy. Gears are manufactured with high precision and high quality steel.

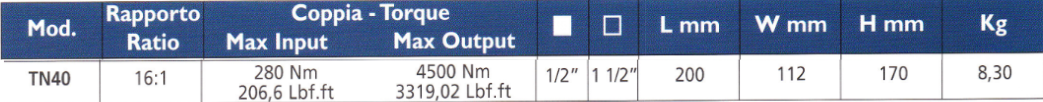

Mod. TN40 With reaction bar

  • Ratio 16:1
  • Max Input 280 Nm. 206,6 Lbf.ft
  • Max Output 4500 Nm. 3319,02 Lbf.ft
  • Length 200mm
  • Weidth 112mm
  • Height 170mm
  • Weight 8,30 Kg

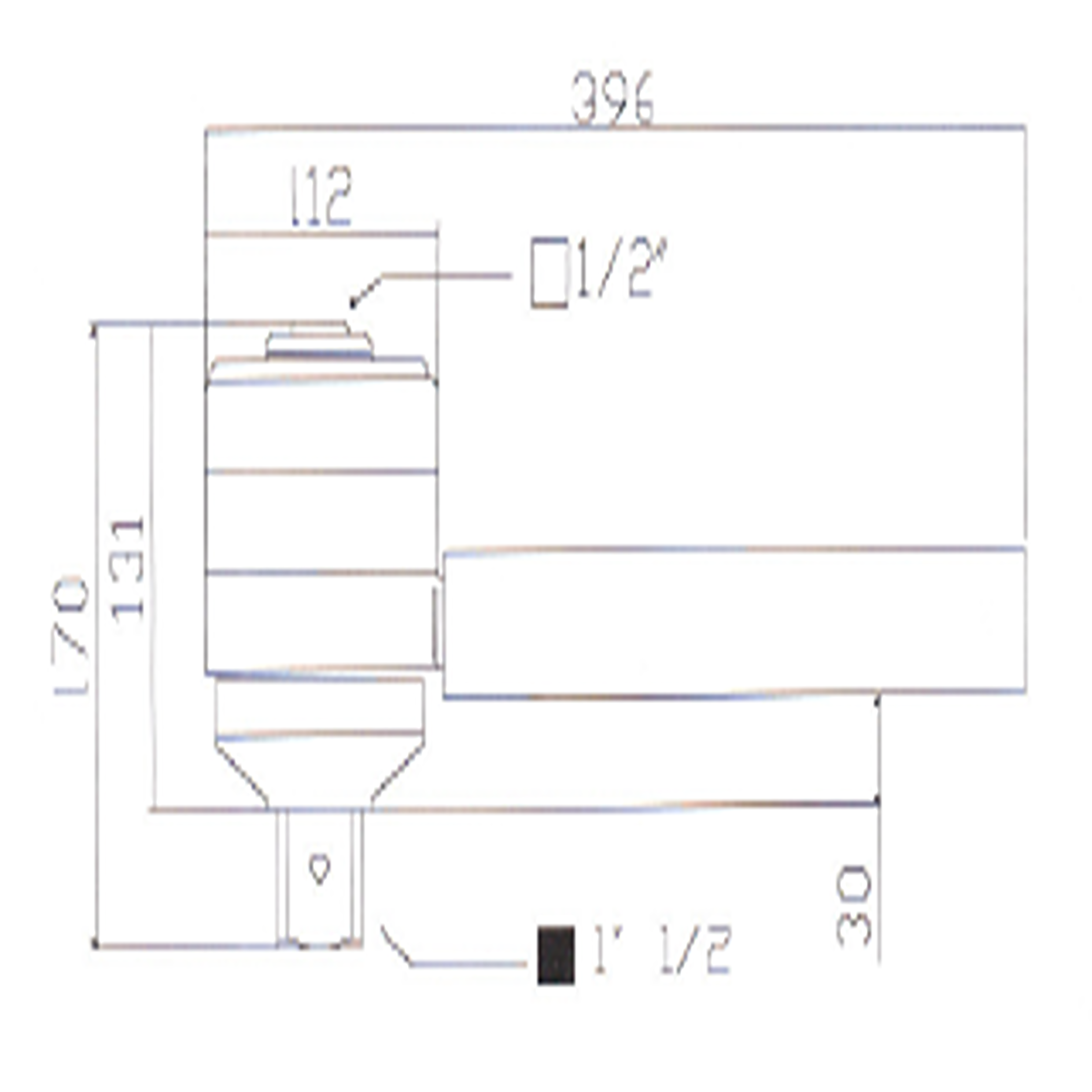

- Refer to Chart Size Image for product specification TECNOGI TN40
