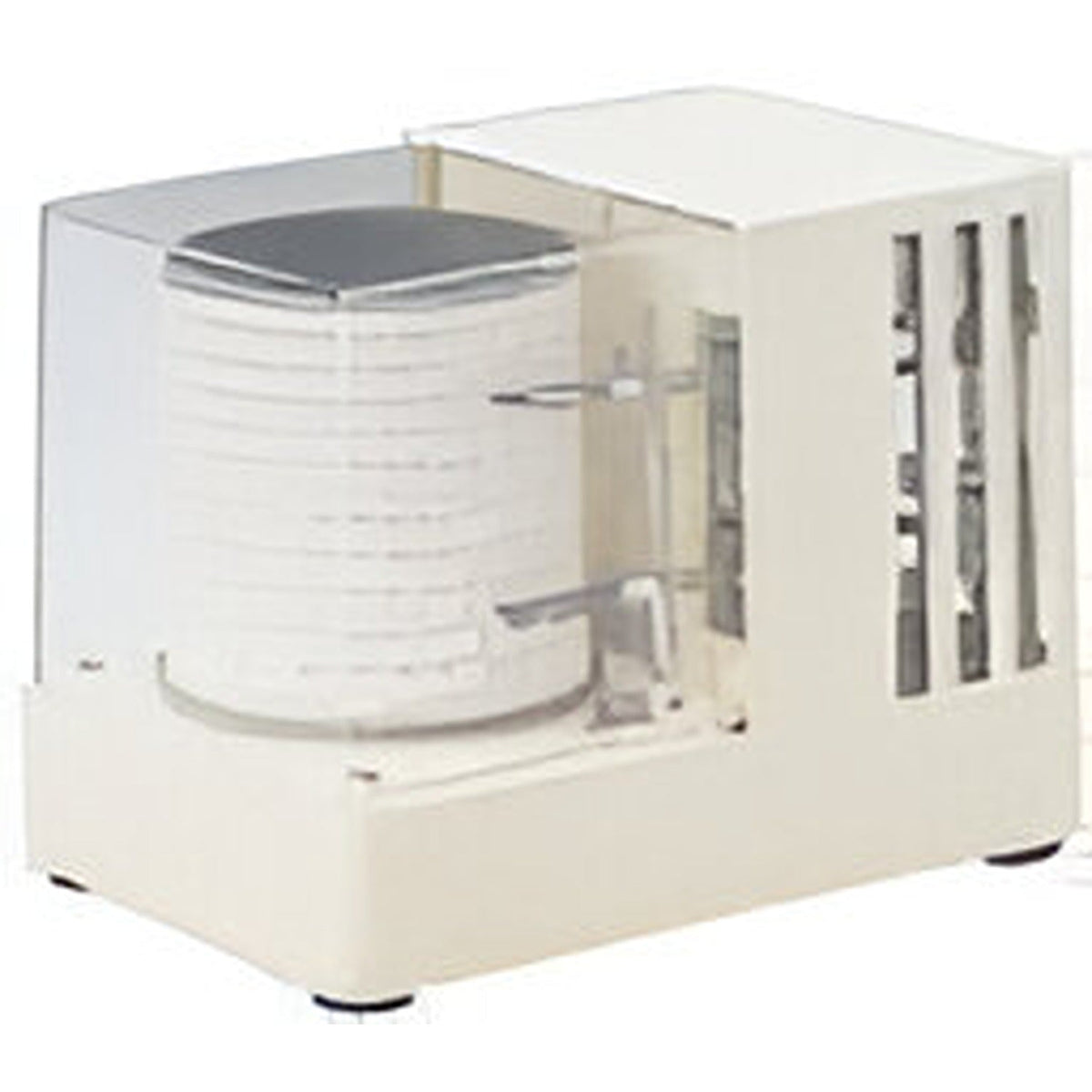

The YEW AIK AK00040 No.7005 “MINI CUBE” Thermohygrograph (Quartz) is a compact and reliable device used for monitoring and recording temperature and humidity levels. With its precision quartz movement, it provides accurate and consistent readings for various applications. Keep track of your environment with ease using this advanced thermohygrograph.
The No. 7005 Model “MINI CUBE” Thermohygrograph (Quartz) is a scientific instrument used for measuring temperature and humidity levels. It is designed to provide accurate measurements in a compact and sleek package. Suitable for both laboratory and field use, the MINI CUBE offers reliable data and long-term stability.
No. 7005 Model “MINI CUBE” Thermohygrograph (Quartz)
SPECIFICATIONS:
Sensor: Aged bimetalic strip for temperature Human hair bundle for relative humidity
Measuring range: -15 to 40˚C for temperature 5 to 100% R.H.
Accuracy: ±2˚C for temperature ±5% for R.H.
Chart graduation: 2˚C for temperature 5% for R.H.
Clock: Quartz clock Drum rotation: 7 day
Power: 1.5V dry cell x 1 (UM 3)
Recording pens: Cartridge pens (violet)
Dimensions: 190 (H) x 148 (W) x 97 (D) mm
Weight: Approx. 1.6 kgs
Standard accessories: 7 day rotation chart pad with 55 sheets (for one year use), UM3 cell x 1
Accessories: Chart and pens 7008-60 Spare 7 day chart (55 sheets/pad) 7008-90 Spare cartridge-pen (violet) 7008-92 Spare cartridge-pen (red)
- Refer to Chart Size Image for product specification
