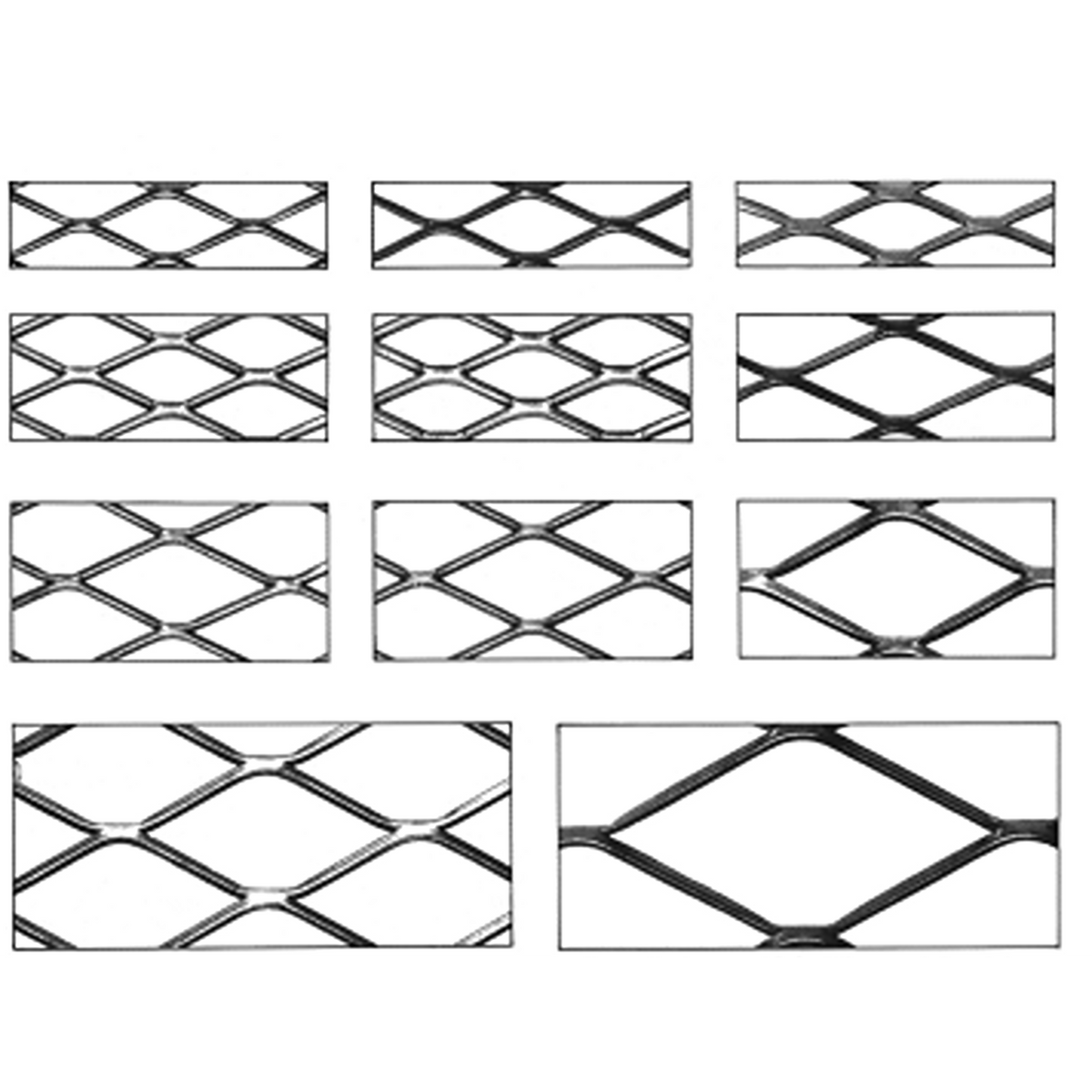

Expanded Metal Meshes are multi-purpose metal meshes commonly used to create lightweight barriers with moderate strength. They are often used for infrastructure and fencing applications, as well as for sound dampening and aesthetic purposes.

Expanded Metal Meshes

Mesh dimensions

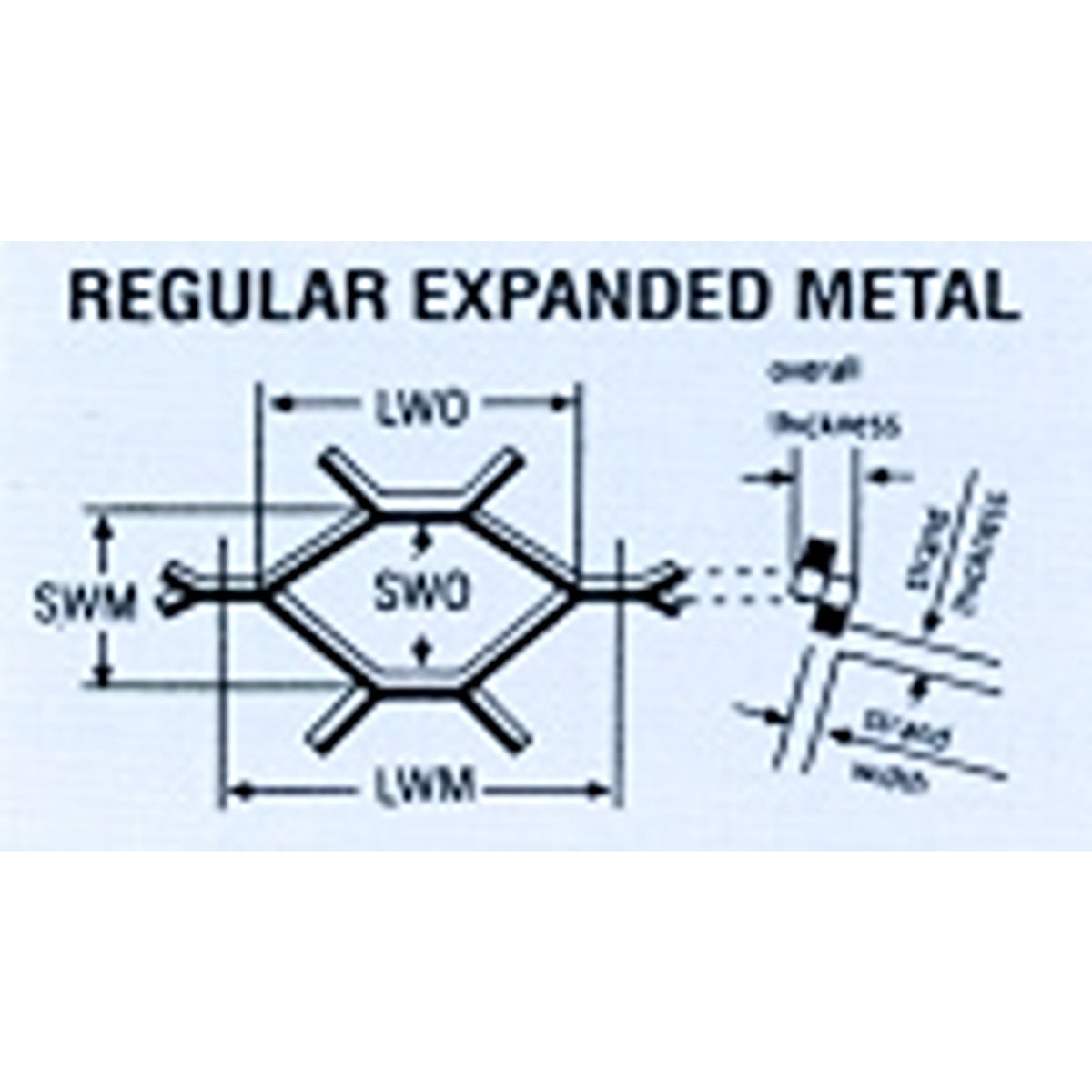

1. For conventional meshes with angled strands dimensions from centre to centre of knuckles shown.

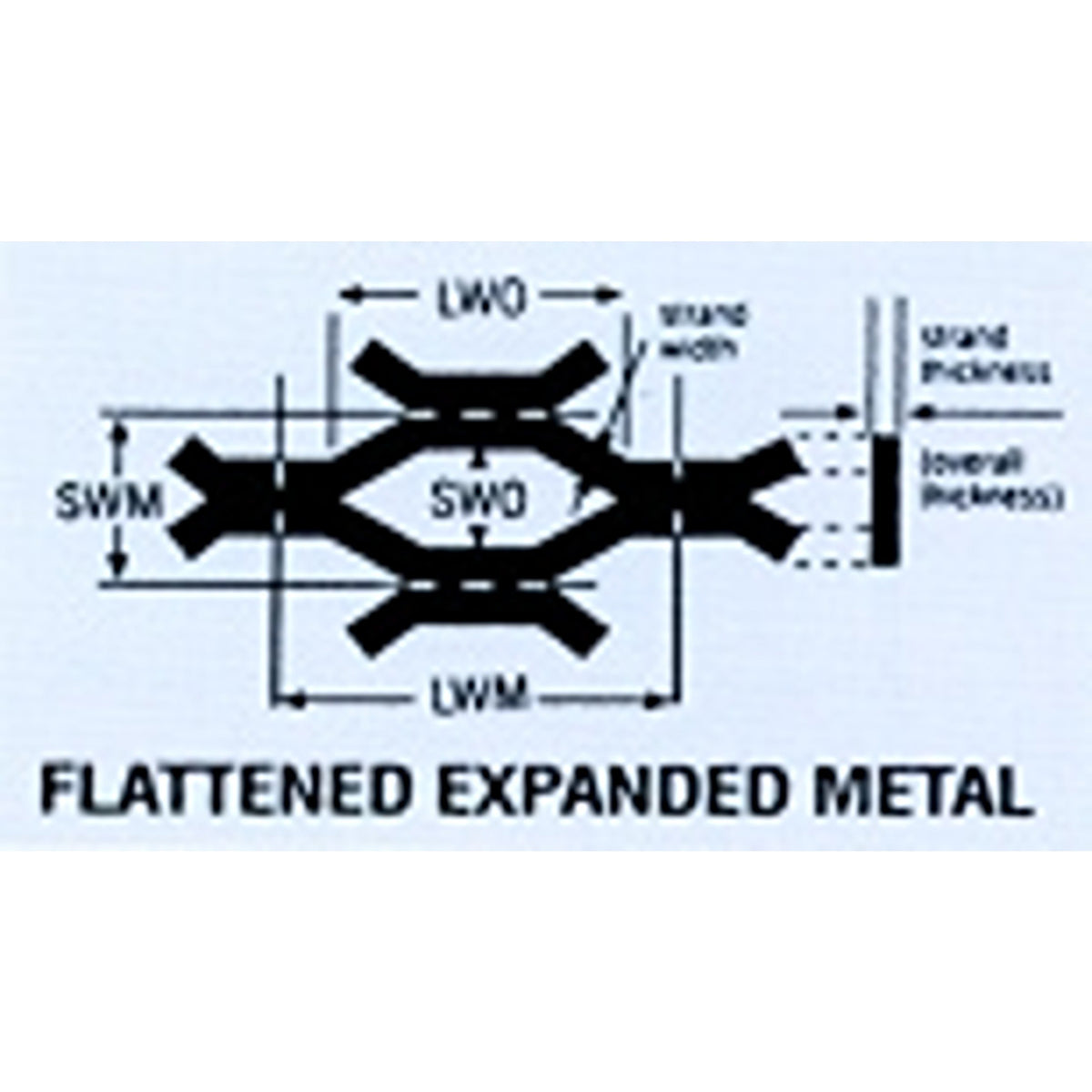

2. For flattened meshes dimensions of the aperture point to point are shown.

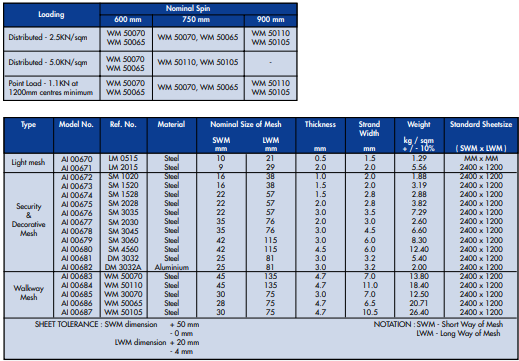

Walkways: Selection Guide for Simply Supported Spans

Assumption: The selection guide assumes mesh spanning in the direction of long way mesh (LWM) having a minimum of every fourth strand welded on supports and minimum 25mm end bearing.

General Information When ordering, please state: 1. Reference number of mesh (include any alphabetical suffix) 2. Raw material 3. Quantity of sheets 4. Sheet size (LW dimension first) 5. Any special finish required

- Refer to Chart Size Image for product specification
