The Universal Bender UL223 is a powerful and versatile tool used to bend metal pipes and rods in any direction. It is equipped with a wide range of components to reduce time and effort when bending various materials. Its adjustable crank handle ensures smooth operation and accuracy. Plus, it offers easy assembly and disassembly for increased portability.

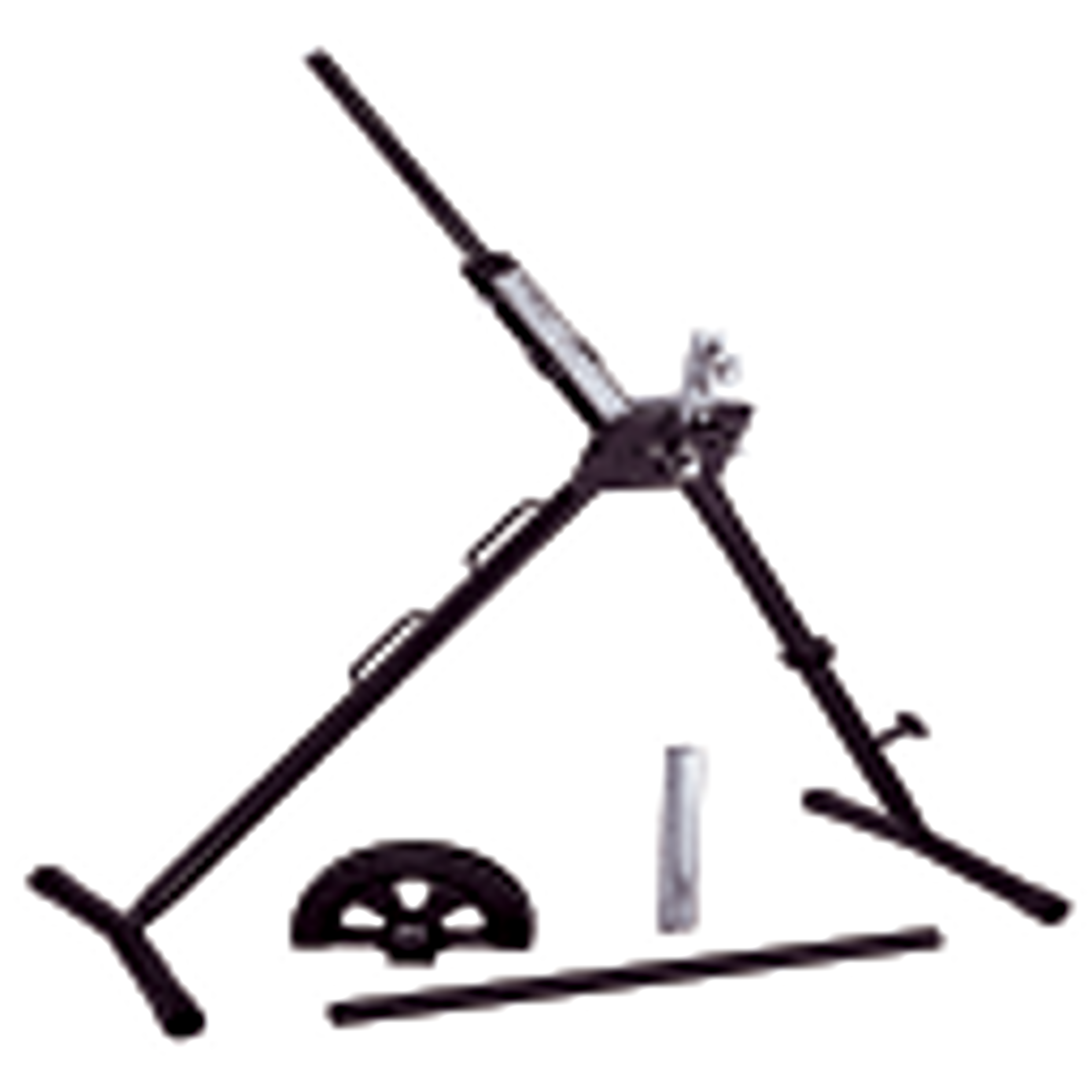

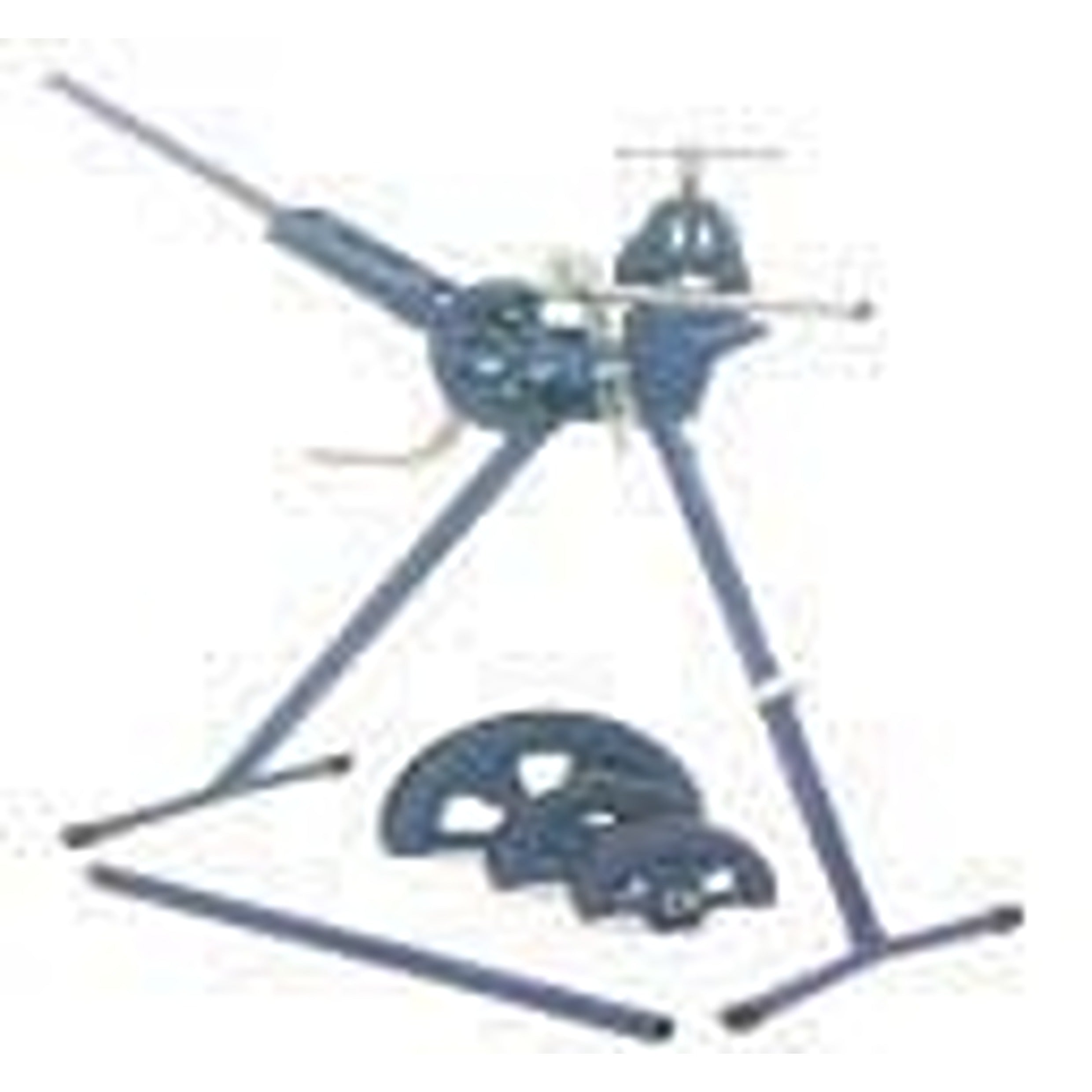

Universal Bender UL223

Versatiliy is the hallmark of this ‘top of the range’ bender. Features include a single universal roller for all forms of pipe, dual position tube locator for cooper or conduit, and an adjustable quadrant for precise repeat bends. As the table below shows this machine will accept all the most widly used sizes and types of pipe, conduit and even soft steel rod.

USER

This tool is unique. It has for many years been the most advanced and versatile on the market.It can be used by a wide range of artisans including heating and ventilation engineers, electricians, plumbers, gas fitters, mechanical maintenance engineers and motor vehicle engineers.

Formers and Guides

When selecting formers and guides for the Record Universal 223 tube and pipe bender please refer to the selection chart . Remerber the roller of the 223 is suitable for use without guides on medium guage steel pipe, conduit and soft steel rod.

Weight

The 223 machine only 50 lb (22.6 kg). If optional 92 C Pipe Vice is required add suffix ‘A’ to catalogue number. The ability to bend large diameter copper tube is easily within the range of the universal bender. Multi adjustable to the tubular legs and feet ensures maximum safety in use.

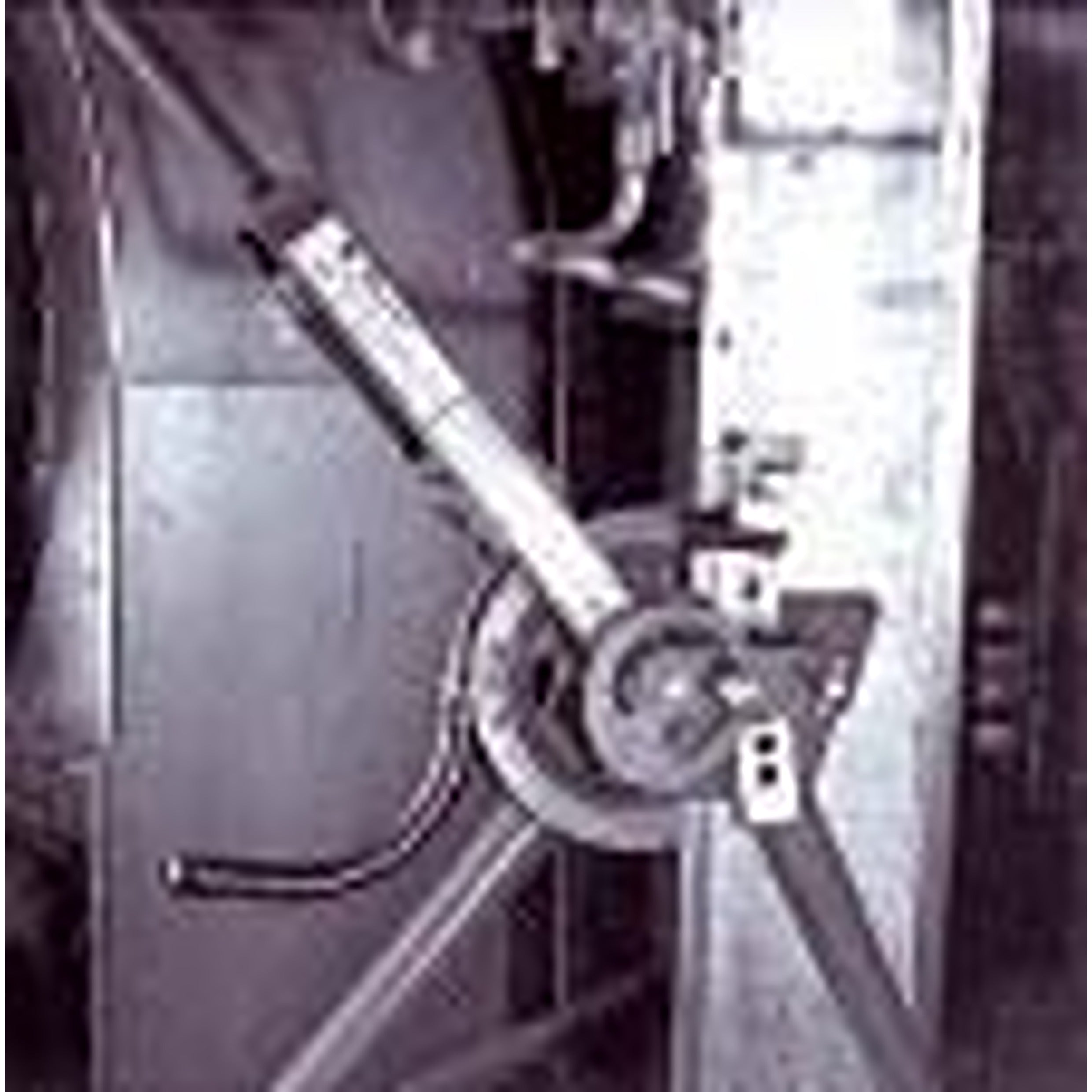

Because pipe bending is not the easiest skill to master, we design our machine to be user friendly. In simple ter ms, a bender works by rolling the pipe, under pressure, around a 180 degrees former. Compressed on the inside of the curve, and stretched on the outside, the pipe has a natural tendency to ‘flat’ and ripple causing the inexperienced user to expend a lot of time and material in frustrating trials and errors. The Record Roller Setting System has largely overcome this problem. The loading arm of every Record stand bender carries simple printed instructions linked to a series of datum marks on the edge of the arm. Read off the size and type of material you want to bead, set and lock the roller on the indicated mark and you’ll make a perfect bend - first time, every time . A detailed instruction book is provided with every machine and, for the specialist, a measured bending chart is freely available on request.

- Refer to Chart Size Image for product specification
