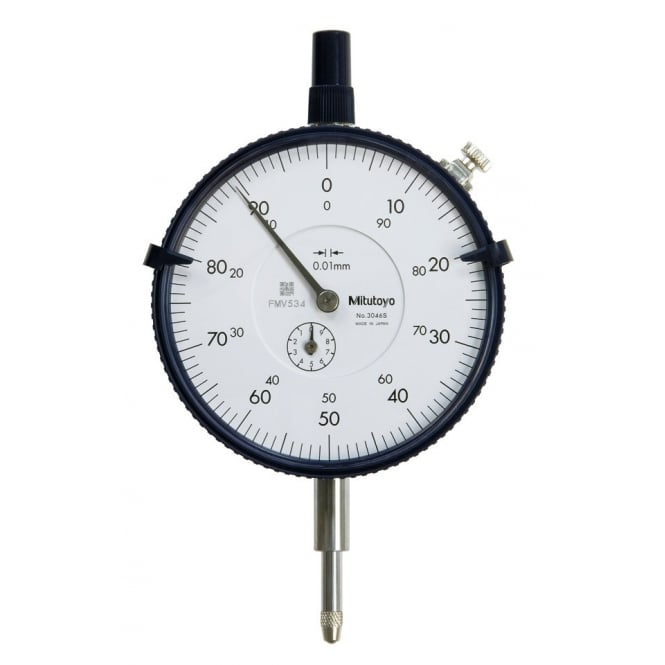

MITUTOYO 3046S 10mm Large Dial Face and Long Stroke Type Metric
Description
MITUTOYO 3046S 10mm Large Dial Face and Long Stroke Type Metric
The MITUTOYO 3046S 10mm Large Dial Face and Long Stroke Type Metric is a precision measuring tool used for taking accurate measurements in metric units. Featuring a large dial face and long stroke design, it provides precise readings for a variety of applications. Perfect for professionals seeking reliable and accurate measurements.
- Large diameter dial face eases reading.
- Supplied with limit pins and a bezel clamp as standard.
Type : Plunger
Range : 10mm (1mm)
Display Type : Non-digital
Graduations : 0.01mm
Accuracy : ±15 µm
Data Output : No
Dial Reading : ±0-100
Measuring Force : 1.4N or less
Measuring Units : Millimetre
- Refer to Chart Size Image for product specification
