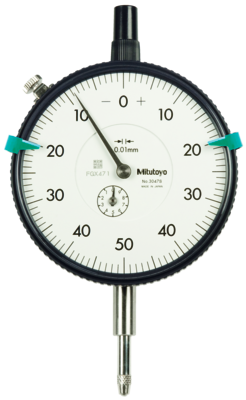

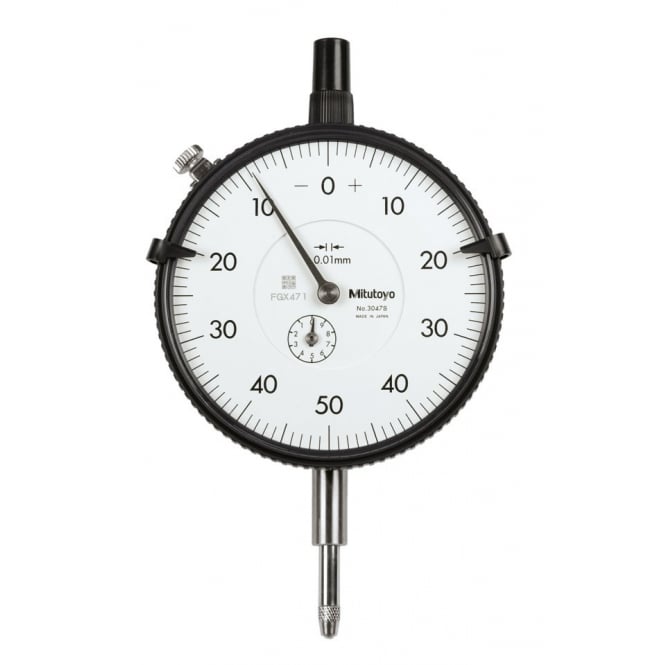

MITUTOYO 3047S 10mm Large Dial Face and Long Stroke Type Metric
Description
MITUTOYO 3047S 10mm Large Dial Face and Long Stroke Type Metric
Discover unparalleled accuracy and precision with the MITUTOYO 3047S 10mm Large Dial Face and Long Stroke Type Metric. Ideal for measuring various components, this tool provides reliable results with its large dial face and long stroke design. Perfect for industries that require precise measurements for their products.
- Dial gauges with a large diameter dial face to ease reading.
- All types come with limit pins and a bezel clamp as standard.
Type : Plunger
Range : 10mm (1mm)
Display Type : Non-digital
Graduations : 0.01mm
Accuracy : ±15 µm
Data Output : No
Dial Reading : 0-50-0
Measuring Force : 1.4N or less
Measuring Units : Millimetre
- Refer to Chart Size Image for product specification
