YEW AIK AK00045 No. 7430-00 Multiple Measuring System

YEW AIK AK00045 No. 7430-00 Multiple Measuring System

YEW AIK AK00045 No. 7430-00 Multiple Measuring System is designed for precision and versatility in measuring multiple dimensions. With its advanced technology and durable construction, this system offers accurate and efficient measurements, making it an essential tool for professionals in various industries. It allows for quick and easy measurements, saving time and increasing productivity.

No. 7430-00 is the ideal solution for those looking to measure temperature and humidity with precision. This multiple measuring system offers easy and accurate readings thanks to its two external probes, digital display, and adjustable calibrations. Achieve reliable results quickly.

No. 7430-00 Multiple Measuring System For Temperature And Humidity

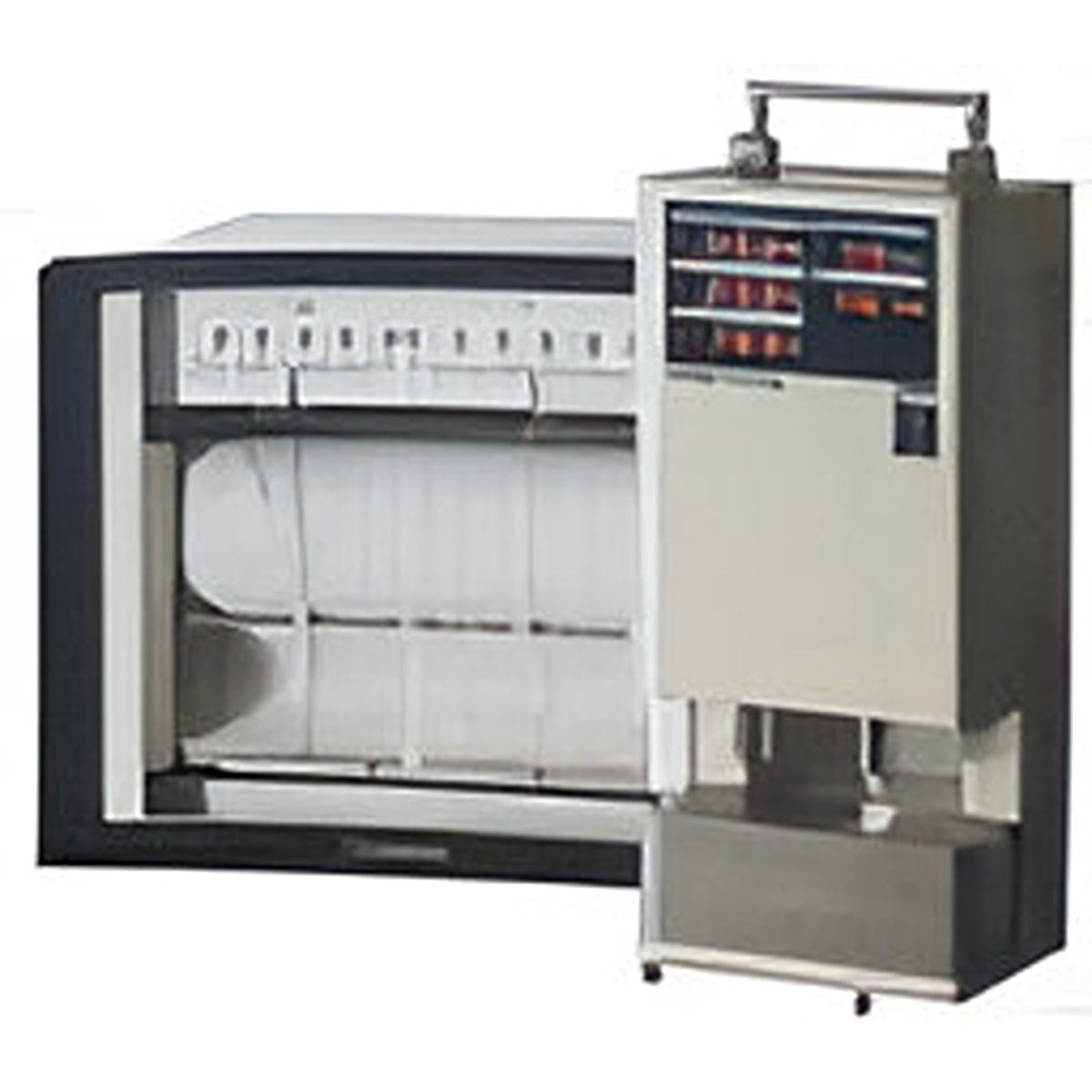

Model SK-5Rad Hygro-Station

FEATURES

* Easy to read by high brightness digital display.

* Assure high accuracy in compact body.

* Eliminate an aging thanks to Pt 100 ohm sensors.

* Can operate with dual AC or DC power source.

* Analog voltage output for humidity and temperature data are available so that it can connect with record SKR-180P.

* With error message display functions avoiding possible accident and mis-operation.

* Alarm message “L” is displayed in case of insufficient voltage.

* High accurate sensors ensure accuracy within 0.2% ± 1 digit.

Principle of Measurement

SATO HYGRO-STATION employs “DRY AND WET BULB METHOD” which has been so called as most stable method for measurement of humidity. The R/V converter inside detects the temperature measured by two Pt 100 ohm sensors and then the data is processed by the mico-computer installed inside so that high accurate relative humidity, absolute humidity and dew point are obtained.

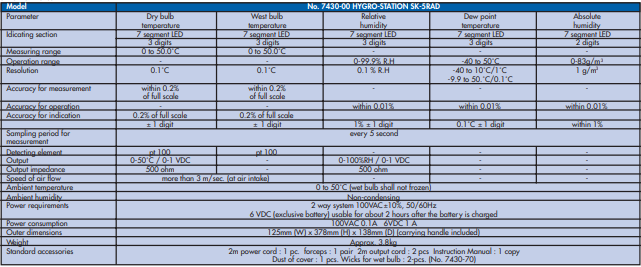

- Refer to Chart Size Image for product specification
